WN100Industrial precipitation of calcium carbonate

Industrial precipitation of calcium carbonateWN100

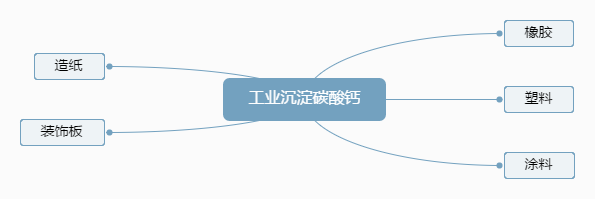

Used as filler for rubber, plastics, coatings,

papermaking and other products;

Reduce the cost, improve the processing,

improve the whiteness and glossiness of products.

The test items		1	2

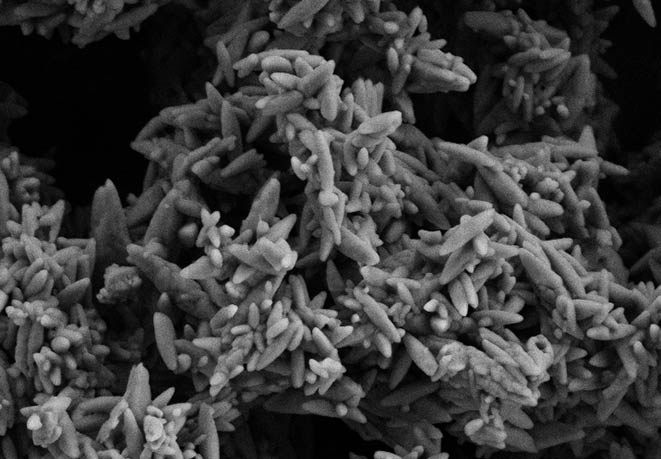

Particle morphology		spindle
Content of CaCO3（%）		≥98	≥97
The iron content（%）		≤0.05	≤0.08
Manganese content（%）		≤0.005	≤0.008
Hydrochloric acid insoluble substance（%）		≤0.1	≤0.2
Whiteness		≥94	≥92
Screenings（%）	125μm	All through	≤0.005
	45μm	≤0.2	≤0.4
105℃ volatiles(%)		≤0.3	≤0.5
PH		9.0-10.0	9.0-10.5
Sedimentation volume(ml/g)		≥2.8	≥2.4

WN101Activated precipitated calcium carbonate

Activated precipitated calcium carbonateWN101

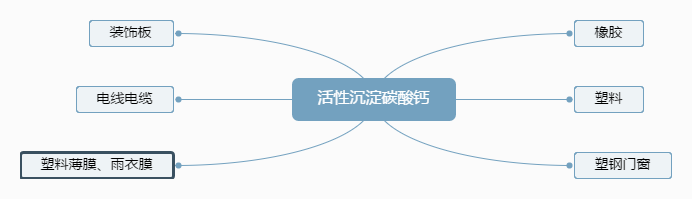

Used as filler for rubber, plastic and other products;

Good dispersion and compatibility,

can be filled in large quantities, improve

the surface brightness of products.

The test items		Indicators
Particle morphology		Spindle
CaCO3 content （%）		≥96
The iron content（%）		≤0.06
Manganese content		≤0.008
Hydrochloric acid insoluble substance（%）		≤0.2
Whiteness		≥92
Screenings（%）		≤0.005
		≤0.2
105℃volatiles(%)		≤0.3
PH		8.0-10.0
The activation degree of(%)		≥96
Oil absorption value（g/100g）		≤60
Surface treating agent		Fatty acids

WN201Fine active precipitation of calcium carbonate

Fine active precipitation of calcium carbonateWN201

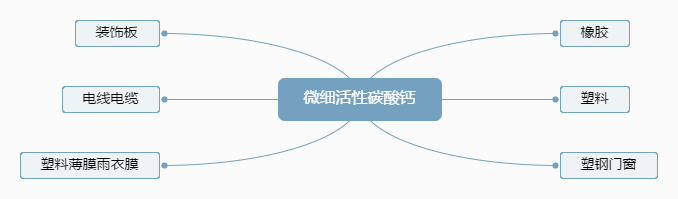

Used in profiles, pipes, wires and cables and other plastic products;

Improve product impact resistance,

tensile strength, good dispersion and easy to process

Increase the service life of the products.

The test items		Indicators

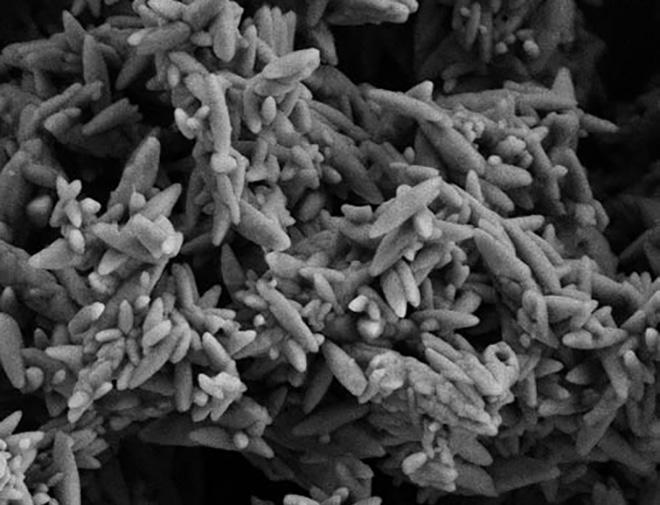

Particle morphology		Spindle
Average particle sizeμm		1-3
CaCO3content （%）		≥95
The iron content（%）		≤0.06
Manganese content（%）		≤0.008
Hydrochloric acid insoluble substance（%）		≤0.15
Whiteness		≥93
Screenings（%）	75μm	≤0.005
	45μm	≤0.2
105℃Volatiles(%)		≤0.3
PH		8.0-10.0
The activation degree of(%)		≥96
Oil absorption value（g/100g）		≤60
Surface treating agent		Fatty acids

WN502Nano calcium carbonate 502

Nano calcium carbonate 502WN502

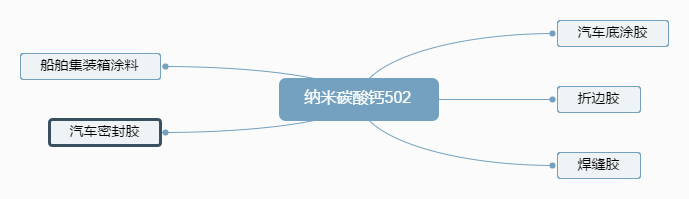

It is used in car bottom coating,

edge folding glue, weld glue, ship

container coating, etc.

It has excellent shear thinning effect,

thixotropy, anti-flow and stability,

and is easy to disperse.

The test items	Indicators

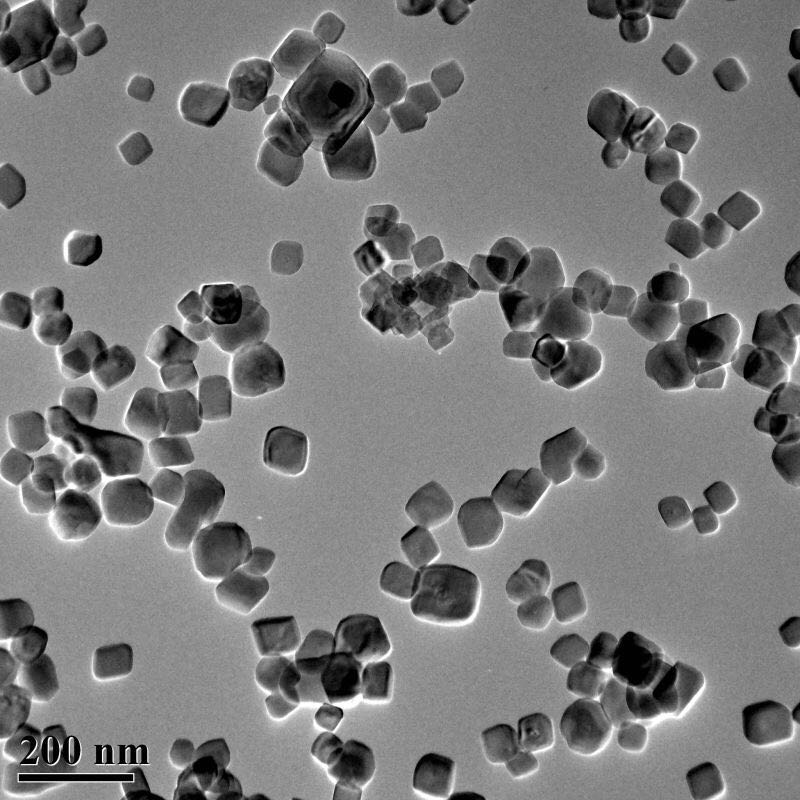

Particle morphology	The cube
Particle size（nm）	60-90
CaCO3 content （%）	≥95
105℃ Volatiles(%)	≤0.5
Oil absorption value（g/100g）	25-32
Specific surface area（m2/g）	≥18
Yield value（Pa）	100-200
Surface modifier	Composite

WN503Nano calcium carbonate 503

Nano calcium carbonate 503WN503

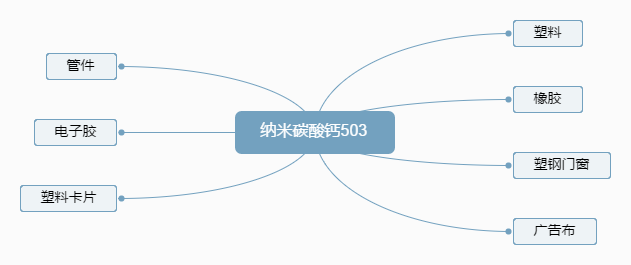

Used in all kinds of rubber and plastic products

Increase the impact strength, yield strength, elongation at break,

Anti - aging, good gloss and easy to color.

The test items	Indicators
Particle morphology	Kind of cubic
The average particle size（nm）	50-100
CaCO3 content（%）	≥95
105℃ volatiles(%)	≤0.5
PH	8.5-10.0
Oil absorption value（g/100g）	28-40
Specific surface area（m2/g）	≥18
Surface modifier	Fatty acids

WN505Functional calcium carbonate

Functional calcium carbonateWN505

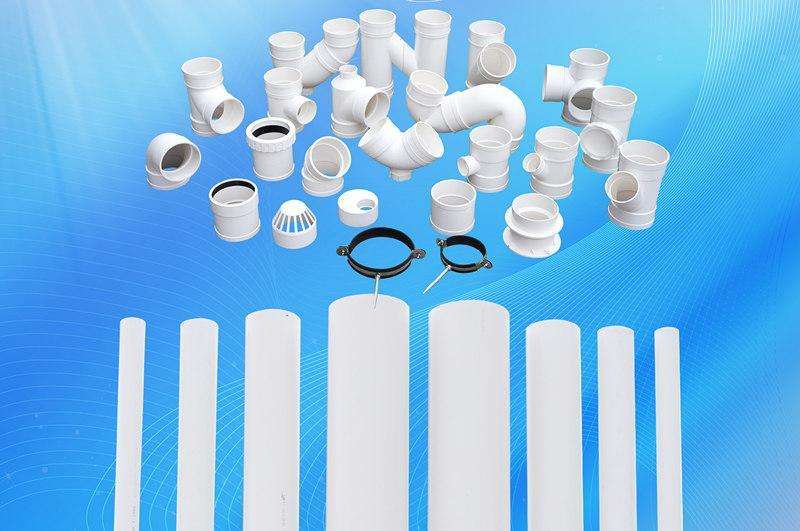

Used in PVC products;

Strengthen and toughen, improve plasticization performance.

The test items	Indicators

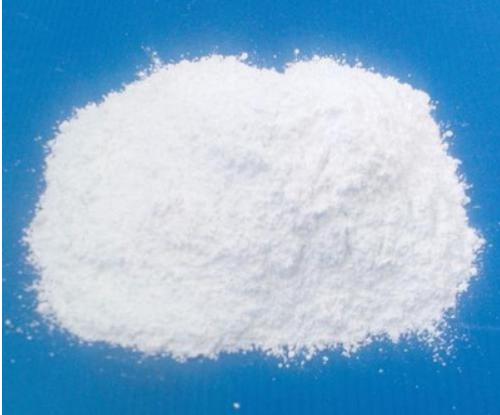

Appearance	White powder
Calcium carbonate content (in dry basis)%	≥95
Whiteness %	≥92
Oil absorption value %	≤40
105℃ volatiles%	≤0.5
Specific surface aream2/g	≥5
Screenings(200) %	All through
The activation degree of %	≥95

WN506Nano calcium carbonate 506

Nano calcium carbonate 506WN506

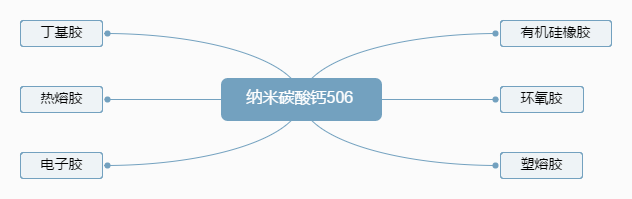

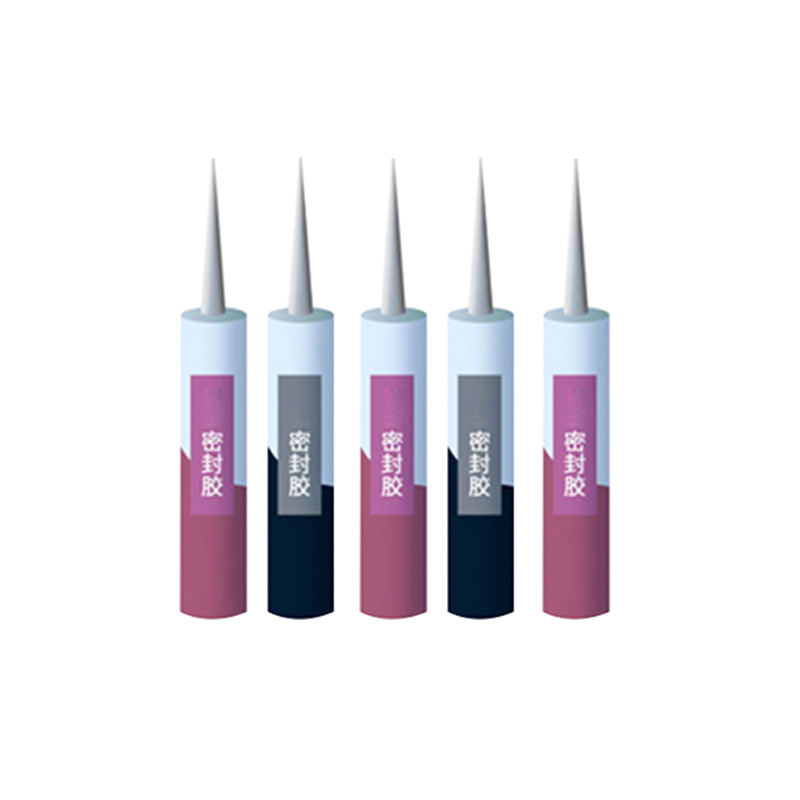

Used in silicone rubber, epoxy adhesive,

butyl adhesive, plastic melt adhesive,

Hot melt adhesive and other adhesives.

Dispersion, good processing modulus low,

give adhesive products excellent

Tensile, adhesion, weather resistance.

Project	1	2	3	6
Particle size	40-60	60-80	80-100	60-90
Specific surface area m2/g	≥25	20-25	18-20	20-25
Calcium carbonate content (in dry basis)%	≥92	≥92	≥92	≥92
105℃ volatiles %	≦0.5	≦0.5	≦0.5	≦0.5
Whiteness %	≥92	≥92	≥92	≥92
PH	7.5-10	7.5-10	7.5-10	7.5-10
Consistency/consistencycm	9—10	10—11	11—12	10—12
Surface treating agent	Fatty acid			Complex fatty acid
Oil absorption value(DOP) %	32-34	30-32	28-30	25-27

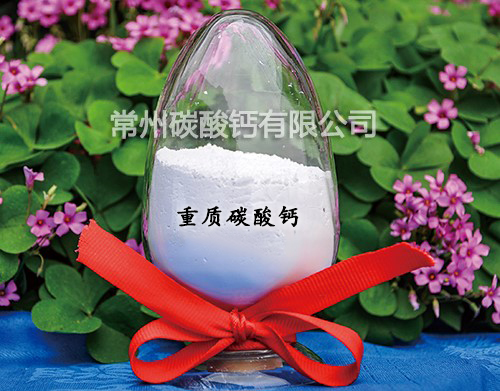

WN601Heavy calcium carbonate 601

Heavy calcium carbonate 601WN601

WN601 Superfine heavy calcium carbonate requirements,

Test methods, inspection rules,

Marking, packaging, storage and transportation.

This standard is applicable to the grinding of

calcite, marble or limestone

The ultrafine heavy calcium carbonate obtained.

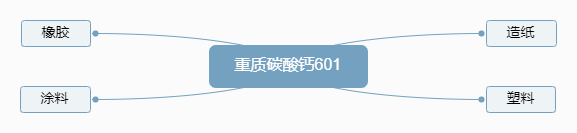

The products are mainly used in paper, rubber, coating,

plastic and other industries for filling agent.

Name	WNG-1	WNG-2	WNG-3
Appearance	White powder	White powder	White powder
Calcium carbonate content (in dry basis)	≥95	≥95	≥95
Whiteness	≥92	≥90	≥85
Dry weight loss	≤0.5	≤0.5	≤0.5
325 mesh (45 m) sieve residue %	≤0.5	≤1	≤0.5

WN602Heavy calcium carbonate 602

Heavy calcium carbonate 602WN602

WN602 - Requirements, Test methods,

inspection rules, marking, packaging,

storage and transportation of

ultra-fine heavy active calcium carbonate.

It is suitable for the ultra-fine heavy active

calcium carbonate obtained from calcite,

marble or limestone after grinding and surface treatment.

The product is mainly used as filling agent in

papermaking, rubber, coating, plastic and other industries.

Name	WNG-1	WNG-2	WNG-3	WNG-4
Appearance	White powder	White powder	White powder	White powder
Calcium carbonate content (in dry basis)	≥96	≥96	≥96	≥96
Whiteness	≥94	≥93	≥92	≥91
Dry weight loss	≤0.5	≤0.5	≤0.5	≤0.5
325 mesh (45 m) sieve residue %	≤0.5	≤0.5	≤1	≤1
The activation degree of %	≥98	≥97	≥96	≥95

WNCalcium hydroxide

Calcium hydroxideWN

Data to be updated

WNCalcium oxide

Calcium oxideWN

Data to be updated
